NIMBUS 5 M COMPACT

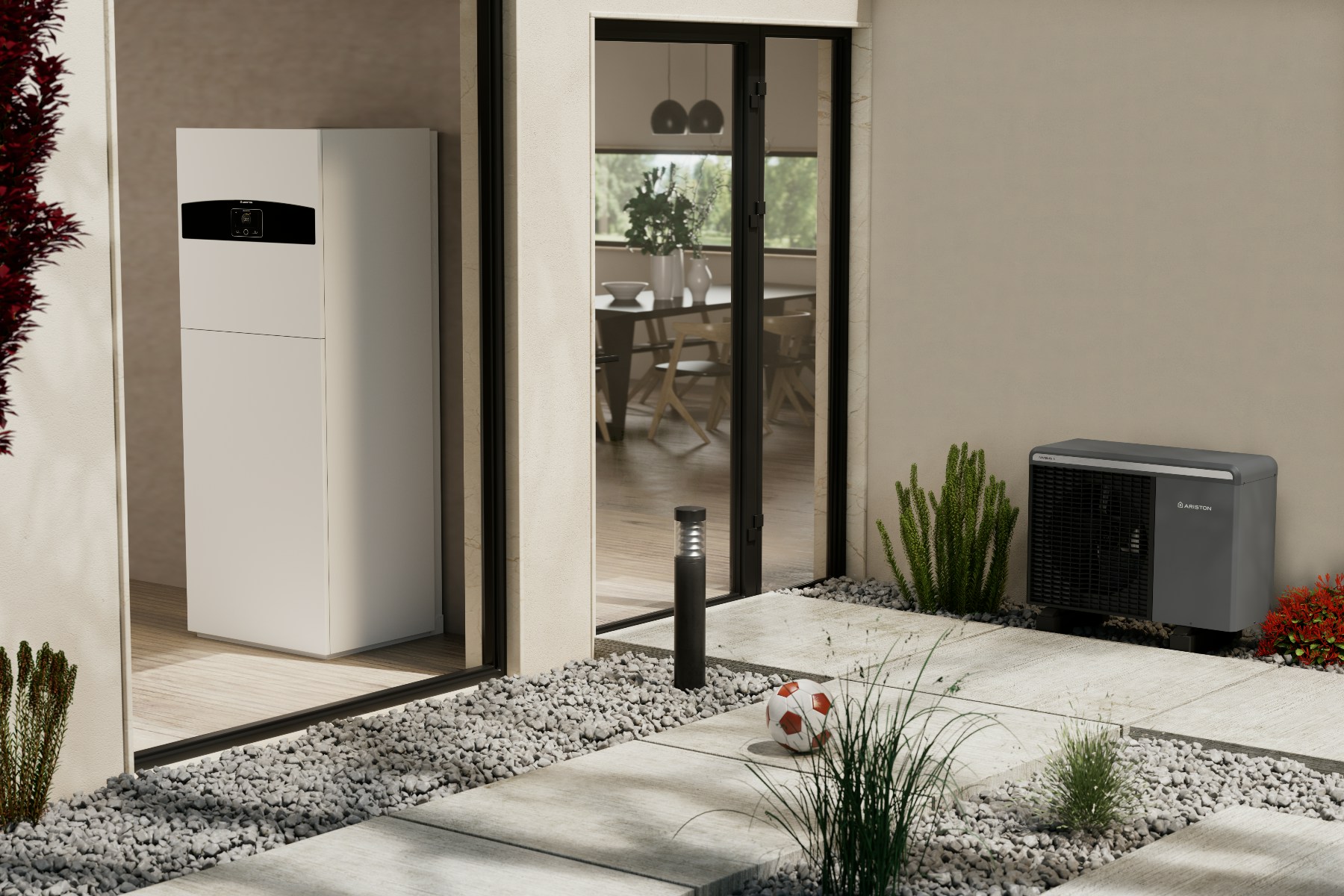

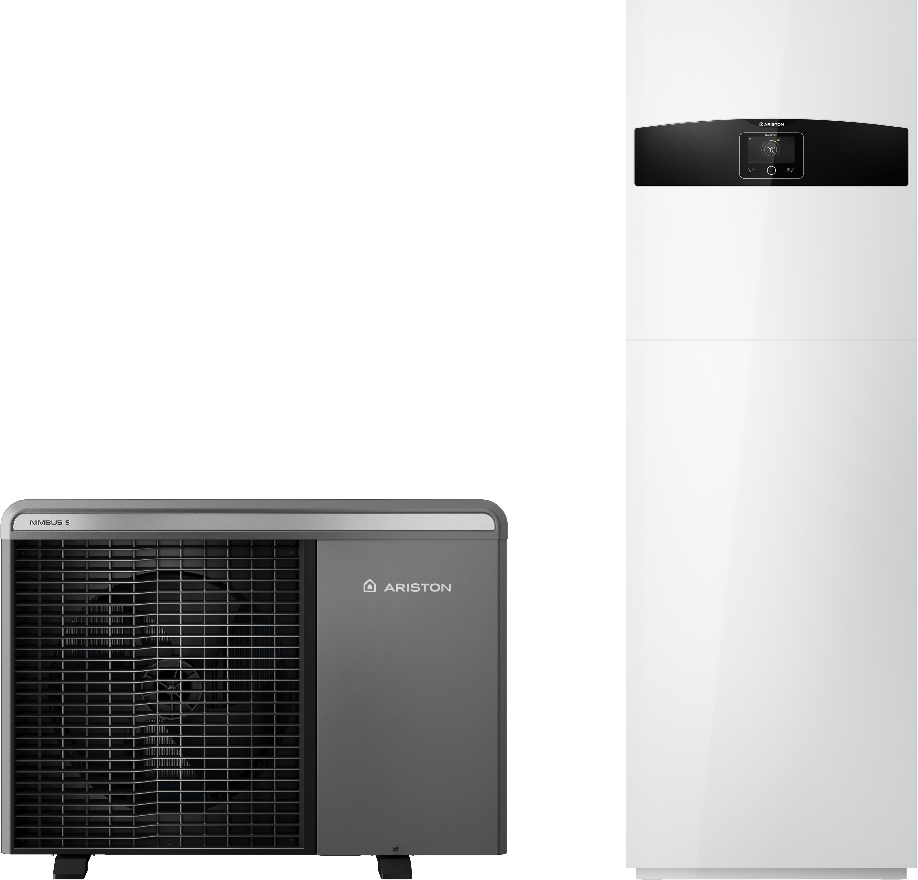

Nimbus 5 M Compact combines heating, cooling and domestic hot water production in a space-saving unit with an integrated 180L tank. With a COP of up to 5.1, smart multi-zone control and seamless system integration, it delivers complete year-round comfort and enhanced energy savings for modern homes.

Nimbus 5 features environmentally friendly R290 refrigerant, for near zero-emissions and COP up to 5.1.

Designed for easier, faster installation, supported by a comprehensive set of installation-friendly features such as wheels for effortless positioning, and quick connectors.

Thanks to the Ariston NET app, users can easily control NIMBUS 5 remotely.

Request more informationRequest more informationContact us
bundle_compact_5_
bundle_compact_5_
odu_small_sx_copia_1
nimbus_tecnico_dettaglio_apertura_1__1
nimbus_5_ambiente_compact_2

advantages and benefits

  • R290 gas refrigerant and COP of up to 5.1
  • Integrated anti-freeze kit, drain pan, cone filter* and
    Y strainer water filter kit**
  • Up to 40% more compact outdoor unit than the
    market average
  • SENSYS HD control offers temperature management
    for up to six zones
  • Effortless integration with boilers, PV systems, solar
    panels and cylinders thanks to patented BridgeNet®
    technology
  • Built-in wheels, lifting straps and grip recesses for
    easy installation and transportation
  • Smart home connectivity via the Ariston Net app for
    up to 25% savings on bills
  • Intuitive defrost system activates only when
    necessary to optimise efficiency
  • 12L expansion vessel and magnetic filter included



*30m, 50m, 80m units, **120m, 150m unit

Request more informationRequest more informationContact us
NIMBUS 5 M COMPACT
discover its features
NIMBUS 5 M COMPACT
discover its features

R290 REFRIGERANT: LOW EMISSIONS, HIGHER ENERGY EFFICIENCY

Nimbus 5 uses R290 natural refrigerant to boost efficiency and reduce environmental impact, achieving near-zero GWP and a COP of up to 5.1.

INTEGRATION WITH ARISTON SYSTEMS AND SOLAR PV

Nimbus 5 integrates effortlessly with boilers, PV systems, solar thermal, tanks, and any type of emitter, using the patented Bus BridgeNet® technology.

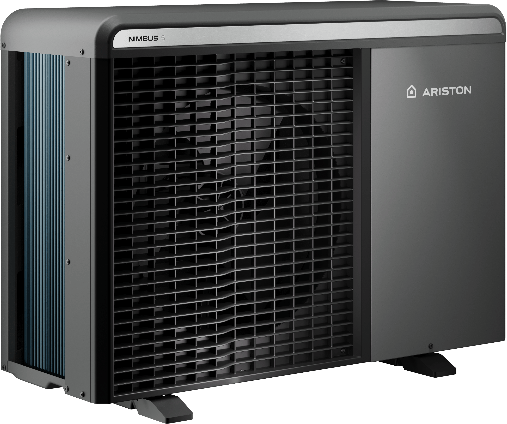

NEW AND COMPACT DESIGN, UP TO 40% SPACE SAVING

40% smaller than average, our outdoor unit ranks among the most compact on the market, seamlessly blending into outdoor spaces and minimising visual impact without compromising performance.

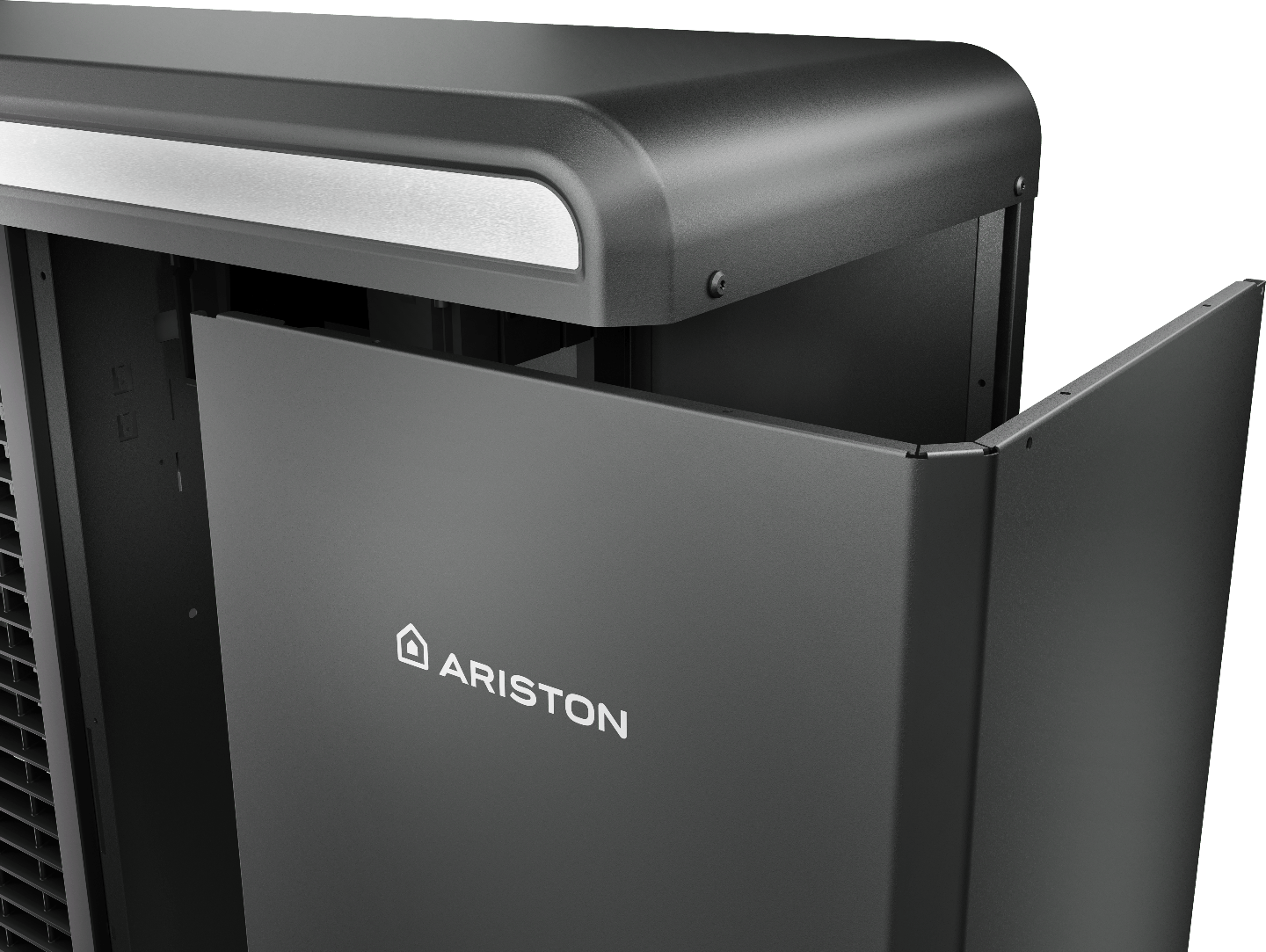

DESIGNED FOR EASY INSTALLATION AND SERVICE

Co-developed with trusted industry professionals, NIMBUS 5 is designed for easier, faster installation, supported by a comprehensive set of installation-friendly features and a spacious, optimised layout that can allow for installation in one day, depending on project complexity.

CONNECTED COMFORT, MADE SIMPLE WITH THE ARISTON NET APP

Thanks to the Ariston NET app, users can easily control NIMBUS 5 remotely. In addition, smart features powered by artificial intelligence like Smart Scheduling and Geofencing bring comfort to the next level. Ariston NET ensures peace of mind with 24/7 remote assistance from authorised service partners, available after signing a maintenance contract.

Technical data

NIMBUS 5 COMPACT 30 M R290

NIMBUS 5 COMPACT 50 M R290

NIMBUS 5 COMPACT 80 M/M-T R290

NIMBUS 5 COMPACT 120 M/M-T R290

NIMBUS 5 COMPACT 150 M/M-T R290
PERFORMANCES IN HEATING

Capacity at -7°C / +35 °C (Min./Nom./Max.)

0.82 / 2.50 / 3.14

1.06 / 5.00 / 5.53

1.63 / 7.00 / 7.92

2.20 / 9.00 / 11.0

2.19 / 11.0 / 12.43

COP nom -7°C / +35 °C

2.41 / 3.10 / 3.25

2.53 / 3.00 / 2.98

3.21 / 3.00 / 2.92

2.99 / 3.00 / 2.84

2.97 / 2.80 / 2.73

Capacity at +7°C / +35 °C (Min./Nom./Max.)

1.21 / 3.00 / 3.73

1.63 / 5.00 / 7.37

2.37 / 8.00 / 11.08

3.33 / 12.0 / 14.08

3.39 / 15.0 / 16.81

COP nom at +7°C / +35 °C

4.82 / 5.10 / 4.10

4.97 / 5.00 / 4.39

5.48 / 4.80 / 4.39

5.00 / 4.80 / 4.33

4.81 / 4.30 / 4.03

Capacity at +2°C / +45 °C (Min./Nom./Max.)

1.02 / 1.90 / 3.78

1.31 / 3.10 / 6.69

1.99 / 4.60 / 9.89

2.72 / 6.40 / 13.11

2.70 / 7.50 / 15.09

COP nom +7°C / +45 °C

3.29 / 3.20 / 3.20

3.17 / 3.10 / 3.13

3.79 / 3.15 / 3.12

3.43 / 3.40 / 2.99

3.24 / 3.25 / 2.87

Capacity at +7°C / +55 °C (Min./Nom./Max.)

1.12 / 2.20 / 3.94

1.42 / 3.8 / 6.45

2.17 / 5.80 / 9.85

3.00 / 7.70 / 12.44

2.98 / 9.50 / 15.19

COP nom +7°C / +55 °C

2.94 / 3.10 / 3.10

3.02 / 3.00 / 2.94

3.41 / 3.00 / 2.88

3.13 / 3.20 / 2.83

2.98 / 3.15 / 2.71
PERFORMANCES IN COOLING
ERP DATA
PRODUCT CODE
more information bundle_compact_5_
NIMBUS 5 M COMPACT
Message
Email
Phone

I accept the privacy's information

Gives consent

Having read the Privacy Policy above, aware that my consent is purely optional, as well as revocable at any time, I give my consent to the processing of my data for the Company to send promotional / commercial communications and to carry out marketing activities in the manner and in accordance with the provisions of the Privacy Policy. privacy's information

Gives consent
denies consent
Technical data

NIMBUS 5 COMPACT 30 M R290

NIMBUS 5 COMPACT 50 M R290

NIMBUS 5 COMPACT 80 M/M-T R290

NIMBUS 5 COMPACT 120 M/M-T R290

NIMBUS 5 COMPACT 150 M/M-T R290
PERFORMANCES IN HEATING

Capacity at -7°C / +35 °C (Min./Nom./Max.)

0.82 / 2.50 / 3.14

1.06 / 5.00 / 5.53

1.63 / 7.00 / 7.92

2.20 / 9.00 / 11.0

2.19 / 11.0 / 12.43

COP nom -7°C / +35 °C

2.41 / 3.10 / 3.25

2.53 / 3.00 / 2.98

3.21 / 3.00 / 2.92

2.99 / 3.00 / 2.84

2.97 / 2.80 / 2.73

Capacity at +7°C / +35 °C (Min./Nom./Max.)

1.21 / 3.00 / 3.73

1.63 / 5.00 / 7.37

2.37 / 8.00 / 11.08

3.33 / 12.0 / 14.08

3.39 / 15.0 / 16.81

COP nom at +7°C / +35 °C

4.82 / 5.10 / 4.10

4.97 / 5.00 / 4.39

5.48 / 4.80 / 4.39

5.00 / 4.80 / 4.33

4.81 / 4.30 / 4.03

Capacity at +2°C / +45 °C (Min./Nom./Max.)

1.02 / 1.90 / 3.78

1.31 / 3.10 / 6.69

1.99 / 4.60 / 9.89

2.72 / 6.40 / 13.11

2.70 / 7.50 / 15.09

COP nom +7°C / +45 °C

3.29 / 3.20 / 3.20

3.17 / 3.10 / 3.13

3.79 / 3.15 / 3.12

3.43 / 3.40 / 2.99

3.24 / 3.25 / 2.87

Capacity at +7°C / +55 °C (Min./Nom./Max.)

1.12 / 2.20 / 3.94

1.42 / 3.8 / 6.45

2.17 / 5.80 / 9.85

3.00 / 7.70 / 12.44

2.98 / 9.50 / 15.19

COP nom +7°C / +55 °C

2.94 / 3.10 / 3.10

3.02 / 3.00 / 2.94

3.41 / 3.00 / 2.88

3.13 / 3.20 / 2.83

2.98 / 3.15 / 2.71
PERFORMANCES IN COOLING
ERP DATA
PRODUCT CODE
more information bundle_compact_5_
NIMBUS 5 M COMPACT
Message
Email
Phone

I accept the privacy's information

Gives consent

Having read the Privacy Policy above, aware that my consent is purely optional, as well as revocable at any time, I give my consent to the processing of my data for the Company to send promotional / commercial communications and to carry out marketing activities in the manner and in accordance with the provisions of the Privacy Policy. privacy's information

Gives consent
denies consent
NIMBUS 5 M COMPACT
related products

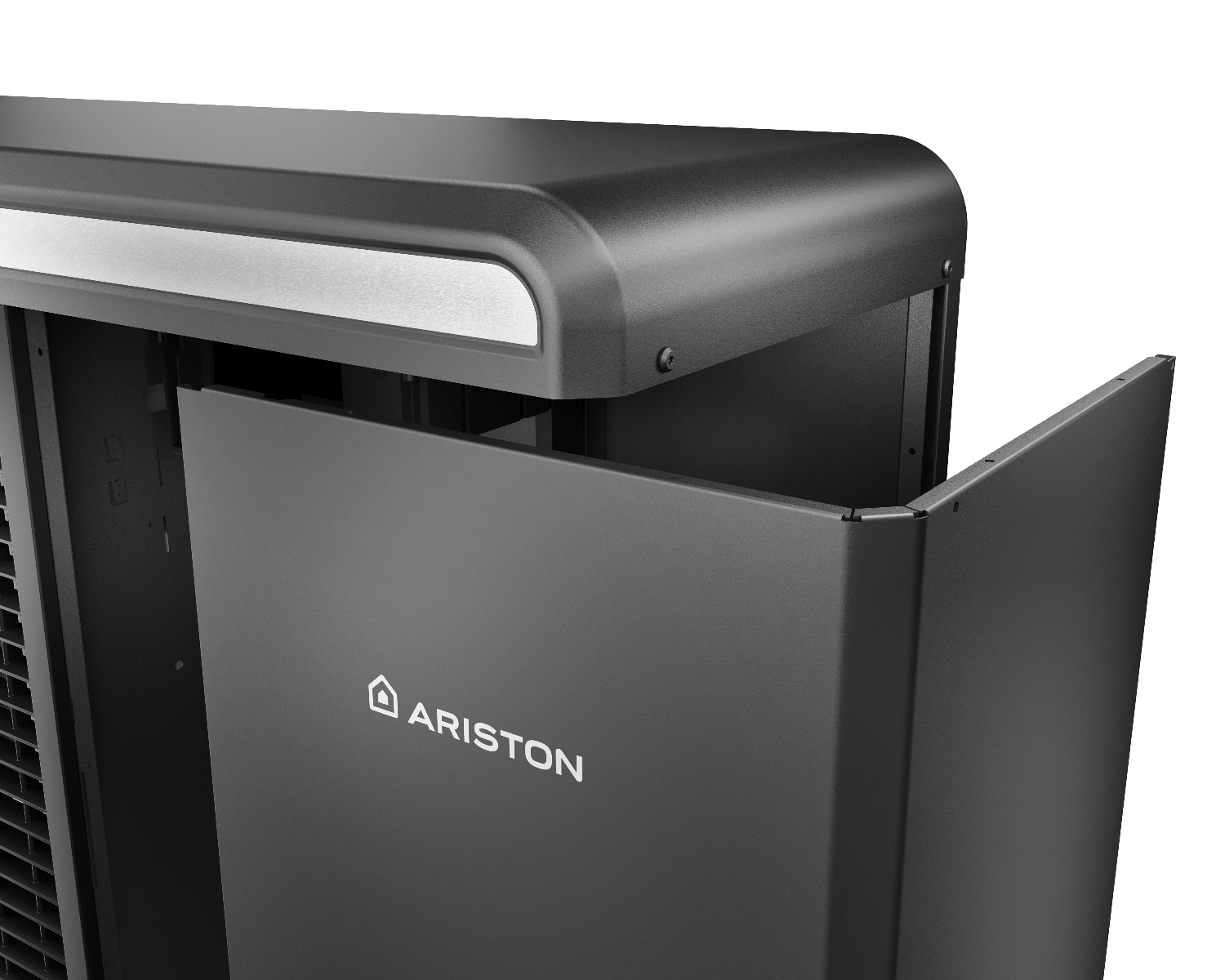

nimbus_tecnico_dettaglio_apertura_1_
