air source heat pump

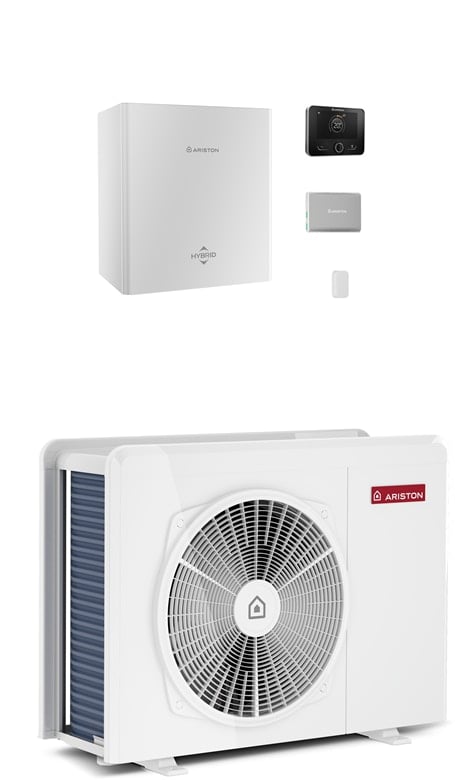

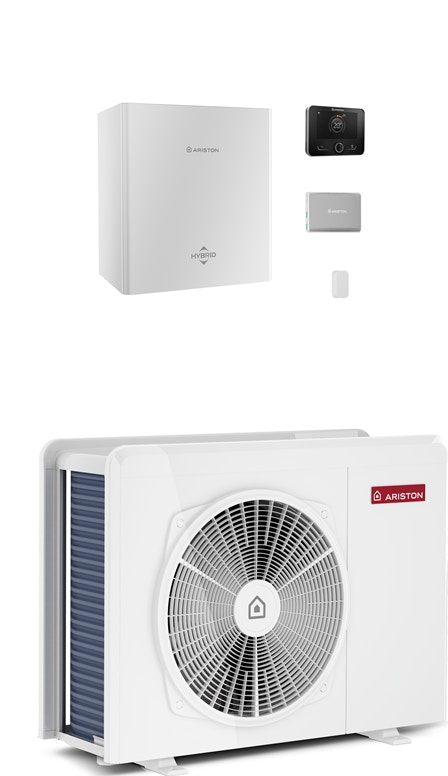

NIMBUS HYBRID UNIVERSAL

Compatible with boilers, this innovative hybrid system enhances existing heating setups by incorporating a high-efficiency heat pump, allowing you to harness renewable energy from the air at no additional cost. This smart solution delivers outstanding comfort while significantly reducing energy bills and environmental impact.

Nimbus Hybrid Universal M Net R32, the air/water heat pump to enjoy well-being in your home and save energy. Product designed to offer particularly high performance in the most extreme conditions. One of the most efficient and durable heating solutions.

At installing or day-to-day, the Nimbus Hybrid Universal M Net R32 air/water heat pump is very easy to use.

R32 refrigerant has a minor impact on global warming. Offers restored power that delivers comfort and performance. R32 refrigerant is compatible with all installation and maintenance operations.

Request more informationRequest more informationContact us
nimbus_hybrid_universal_r32
nimbus_hybrid_universal_r32
nimbus_m_hybrid_universal_net_2022_3

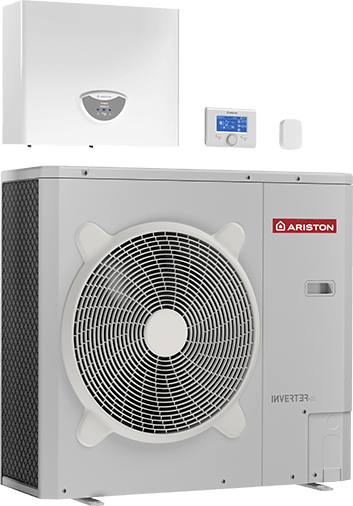

ariston nimbus hybrid universal

advantages and benefits

  • Eco Refrigerant R32
  • COP up to 5.1
  • Low noise levels up to 53 dB(A)
  • Up to 15kW of Heat Pump nominal capacity
  • Sensys NET HD system interface and external heat regulation sensor included as standard
  • Remote management with the Ariston NET app*
  • By-side installation of the hybrid module allows maximum installation flexibility
  • Smart Heat Pump & Gas Boiler control thanks to BUS communication*
  • PV function
  • Install recommended:
    Anti-Freeze Kit - 3319687
    Drain Pan - 3024383
    Talk to your local Ariston Representative about further specific accessories dependent on the type of installation







*When bundled with an Ariston boiler



Request more informationRequest more informationContact us
NIMBUS HYBRID UNIVERSAL
discover its features
  • EVERLASTING QUALITY

    All system components and software are internally developed by Ariston to ensure long-lasting performance, high-efficiency, and extended product life.

    QUALITY
    QUALITY
  • ENHANCED SAFETY SYSTEM

    Designed with the latest technology and built with selected materials, Ariston air conditioners are completely safe.

    SAFETY
    SAFETY
NIMBUS HYBRID UNIVERSAL
discover its features

EVERLASTING QUALITY

All system components and software are internally developed by Ariston to ensure long-lasting performance, high-efficiency, and extended product life.

ENHANCED SAFETY SYSTEM

Designed with the latest technology and built with selected materials, Ariston air conditioners are completely safe.

Technical data

NIMBUS HYBRID UNIVERSAL 35 NET R32

NIMBUS HYBRID UNIVERSAL 50 NET R32

NIMBUS HYBRID UNIVERSAL 80 NET R32

NIMBUS HYBRID UNIVERSAL 80-T NET R32

NIMBUS HYBRID UNIVERSAL 120 NET R32

NIMBUS HYBRID UNIVERSAL 120-T NET R32

NIMBUS HYBRID UNIVERSAL 150 NET R32

NIMBUS HYBRID UNIVERSAL 150-T NET R32
PERFORMANCES IN HEATING

Capacity at -7°C / +35 °C (Min./Nom./Max.)

1.04 / 3.51 / 4.52 kW

1.04 /5 / 5.20 kW

1.79 / 7.41 / 8.45 kW

1.79 / 7.41 / 8.45 kW

2.73 / 9.51 / 11.47 kW

2.73 / 9.51 / 11.47 kW

2.99 / 11 / 13.79 kW

2.99 / 11 / 13.79 kW

COP nom -7°C / +35 °C

3.1

2.9

3.0

3.0

3.2

3.2

3.1

3.1

Capacity at +7°C / +35 °C (Min./Nom./Max.)

1.68 / 3.5 / 6.35 kW

1.68 / 5 / 7.57 kW

2.74 / 8 / 11.74 kW

2.74 / 8 / 11.74 kW

4.23 / 12 / 14.37 kW

4.23 / 12 / 14.37 kW

4.08 / 15 / 17.65 kW

4.08 / 15 / 17.65 kW

COP nom at +7°C / +35 °C

5.1

5.0

4.8

4.8

4.9

4.9

4.7

4.7

Outdoor Sound Power Level

53

55

57

57

58

58

58

58
PERFORMANCES IN COOLING
ERP DATA
PRODUCT CODE
more information nimbus_hybrid_universal_r32
