CYLINDER

MAXIS CDZ

Advantages and benefits

Floor-standing vertical cylinder with high capacity for the storage of domestic hot water

  • Steel boiler with exclusive titanium- based enamel treatment.
  • Magnesium anti-corrosion anode.
  • Recirculation.
  • Inspection flange.
  • Integrated probe-housing sheath.
  • Flexible removable insulation.
  • Active anode available as accessory.
  • 400 mm inspection flange.
  • Available heating element up to 15 kW

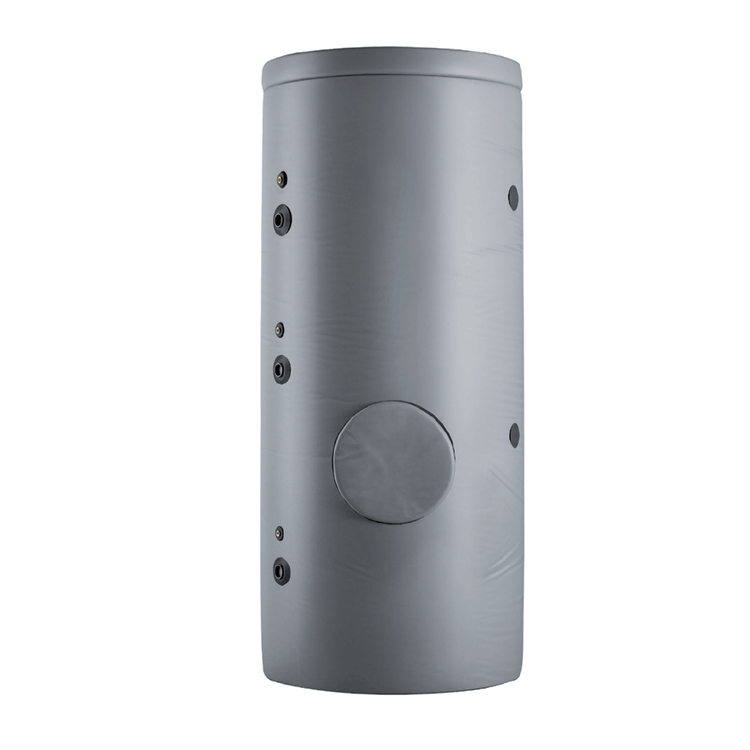

MAXIS CDZ-1
btn-primary
false
_blank
/content/ariston/vn/en/customer-service
Contact us
Contact us
btn-terthiary
false
_self
Technical data
MAXIS CDZ 800
MAXIS CDZ 1000
MAXIS CDZ 1500
MAXIS CDZ 2000
MAXIS CDZ 2500
MAXIS CDZ 3000
Capacity
776 L
886 L
1492 L
1940 L
2470 L
2880 L
Max. working pressure
8 bar
8 bar
8 bar
8 bar
8 bar
8 bar
Max. cylinder working temperature
95 °C
95 °C
95 °C
95 °C
95 °C
95 °C
Thermal loss (EN 60379)
3 kWh/24h
3,1 kWh/24h
3,8 kWh/24h
4,28 kWh/24h
4,67 kWh/24h
5,1 kWh/24h
Empty weight
228 kg
256 kg
349 kg
432 kg
524 kg
576 kg
