NUOS PRIMO HC

DOMESTIC HEATPUMP WATER HEATER

NUOS PRIMO HC

Features
request a quoterequest a quoteContact us
Home | DOMESTIC HEAT PUMP WATER HEATERS | NUOS PRIMO HC
DOMESTIC HEATPUMP WATER HEATER

NUOS PRIMO HC

request a quoterequest a quoteContact us

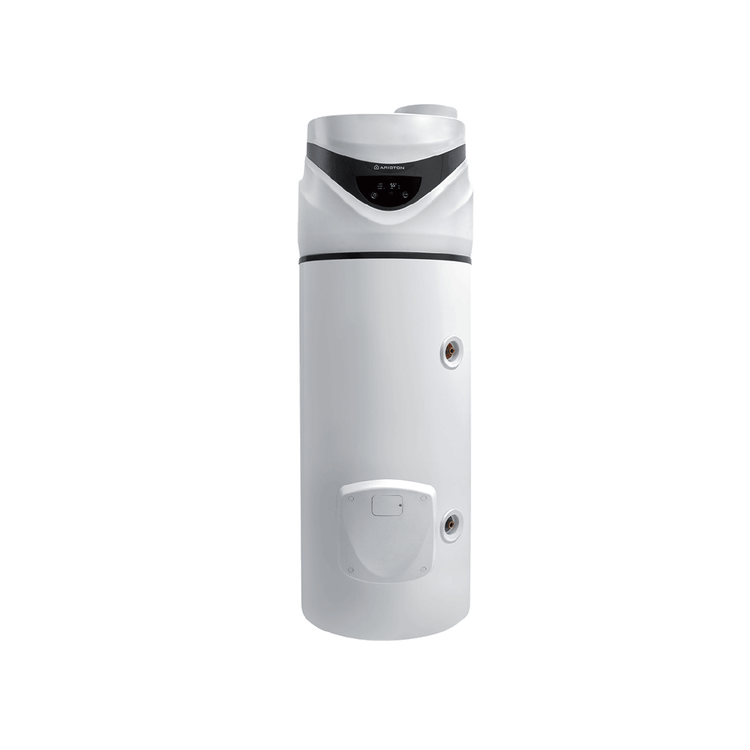

DOMESTIC HEATPUMP WATER HEATER NUOS PRIMO HC
DOMESTIC HEATPUMP WATER HEATER NUOS PRIMO HC

advantages and benefits

  • Operating range in heat pump mode with air temperature from -5 to 42 °C
  • Environmentally friendly gas R134A makes it possible to achieve water
  • temperatures up to 62 °C in heat pump mode
  • Condenser is wrapped around the boiler (not immersed in water)
  • Titanium enamelled steel boiler
  • Immersed electric heating element
  • Active anode (protech) + magnesium anode
  • LCD Display
  • Modes: green, auto, boost and antilegionella modes, with drawal time setting
  • Coil and sensor slot for solar energy integration or boiler (NUOS PRIMO 240 SYS)
  • Integrated transportation straps
  • Product intended for indoor installation
request a quoterequest a quoteContact us
Technical data

200

240

240 SYS
TECHNICAL DATA

COP**

2,85

3,15

3,06

COP*

2,71

2,86

2,77

Heating time

6,19 h:min

7,59 h:min

7,57 h:min

Min/max air temperature

-5/42 °C

-5/42 °C

-5/42 °C

Max. water temperature heat pump only mode/with R

55/75 °C

55/75 °C

55/75 °C

Sound power

53 dB(A)

53 dB(A)

53 dB(A)

Average electrical power consumption in heat pump mode

500 W

500 W

500 W

Nominal storage tank capacity

202 L

244 L

239 L

Max operating pressure

6 bar

6 bar

6 bar

Voltage/Max power consumption

220-230 V / 2750 W

220-230 V / 2750 W

220-230 V / 2750 W

Heating element power

2000 W

2000 W

2000 W

Standard air flow rate

400 m3/h

400 m3/h

400 m3/h

Min volume of the installation room

20 m3

20 m3

20 m3

Empty weight

87 kg

92 kg

107 kg

Electrical system protection grade

IP24

IP24

IP24

Insulation thickness

35 mm

35 mm

35 mm

Water connections diameter

3/4 M "

3/4 M "

3/4 M "

Min Temperature of storage tank room

1 °C

1 °C

1 °C

Heat Exchanger Surface Area

-

-

0,65 m2

Heat dispersion (standby losses)

28 W

34 W

35 W

Available static pressure

55 Pa

55 Pa

55 Pa

Annual energy consumption (average climate)

912 kWh/year

1425 kWh/year

1470 kWh/year

Seasonal efficiency

112,3 %

117,6 %

114,0 %

V40 (Qty of mixed DWH at 40°C)

247 L

323 L

313 L
more information nuos_primo
