Professional products

ARI

Advantages and benefits

  • Elegant design.
  • Titanium enamelling.
  • Magnesium anode on the top.
  • Easily removed inspection flange.
  • HighH IP protection rating.

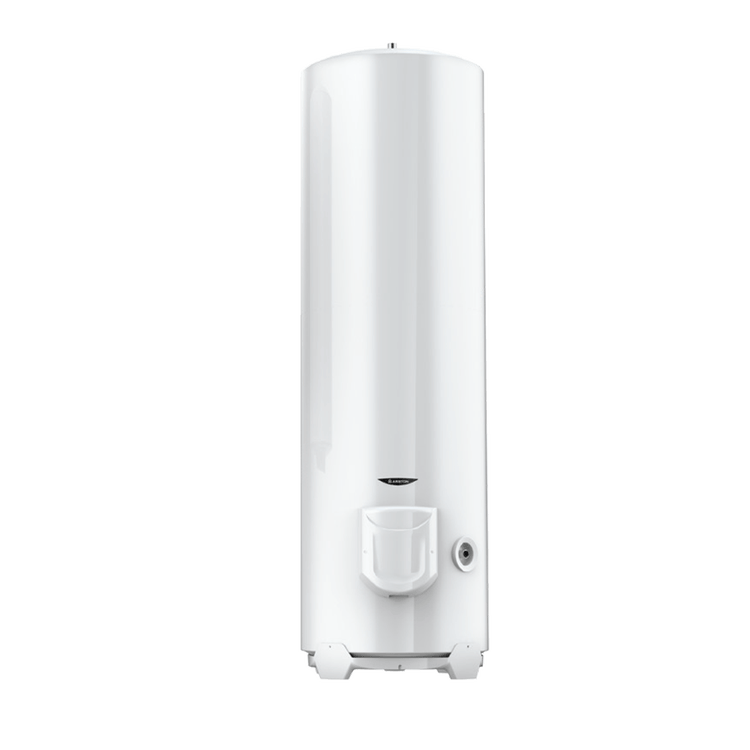

ARI-1

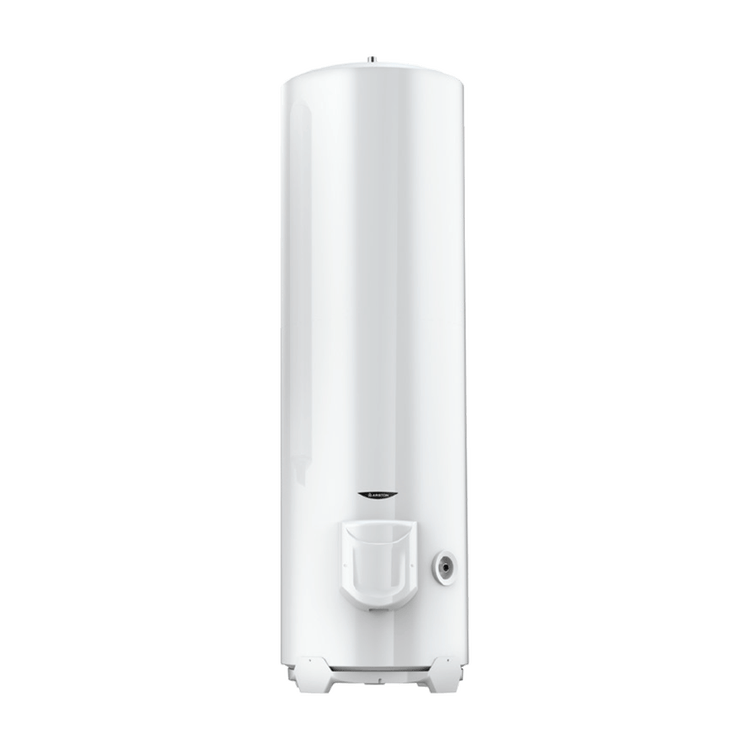

ARI-2
/content/ariston/vn/en/modals/modals-info
request a quote
request a quote
btn-primary
false
_blank
/content/ariston/vn/en/customer-service
Contact us
Contact us
btn-terthiary
false
_self
Technical data
ARI 200 VERT 530 THER MO VS EU
ARI 200 STAB 570 THER MO VS EU
ARI 300 STAB 570 THER MO VS EU
ARI 200 STAB 570 THER TM VS EU
ARI 300 STAB 570 THER TM VS EU
Model
Single-Phase
Single-Phase
Single-Phase
Single-Phase /Tri-Phase
Single-Phase /Tri-Phase
Nominal Capacity
200 L
200 L
300 L
200 L
300 L
Qty of mixed DWH at 40°C*
359 L
356 L
525 L
356 L
525 L
Output
2,2 kW
3 kW
3 kW
3 kW
3 kW
Voltage
230 V
230 V
230 V
230/400 V
230/400 V
Heating time ∆(T= 45°C)
4,28 h,min
4,26 h,min
5,54 h,min
4,26 h,min
5,54 h,min
Max. operating temp
75 °C
70 °C
70 °C
70 °C
70 °C
Heat dispersion at 65°C
1,76 kWh/24h
1,88 kWh/24h
2,6 kWh/24h
1,88 kWh/24h
2,6 kWh/24h
Max. operating pressure
8 bar
6 bar
6 bar
6 bar
6 bar
Net weight
49 kg
50 kg
71 kg
50 kg
71 kg
Protection
X5 IP
X5 IP
X5 IP
X5 IP
X5 IP

ARI

ARI

Download

Ariston_Feature_Catalog_2022_TT_compressed (PDF, 10.83 mb)
/content/dam/ariston/vn/products/electric-storage-water-heaters/professional-products/ari-200-300/ariston-feature-catalog-2022-tt-compressed.pdf
Ariston_TT_Brochure_STO_2022_compressed (PDF, 3.58 mb)
/content/dam/ariston/vn/products/electric-storage-water-heaters/professional-products/ari-200-300/ariston-tt-brochure-sto-2022-compressed.pdf
