Kairos Thermo GR-2

Natural circulation indirect solar system for the production of domestic hot water

request a quoterequest a quoteContact us

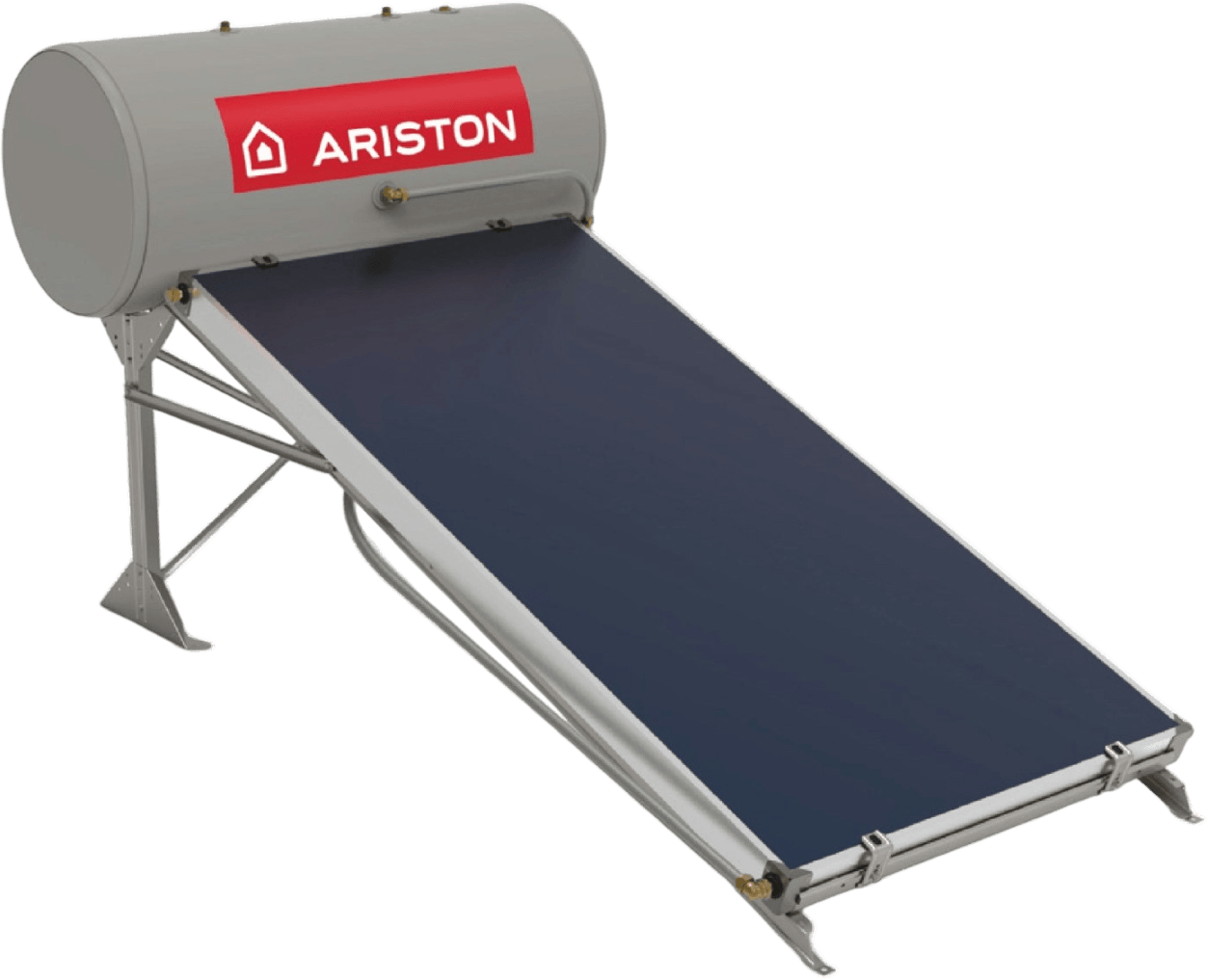

kairos_thermo_gr2. photoroom
kairos_thermo_gr2. photoroom

advantages and benefits

  • Natural circulation solar system for production of domestic hot water
  • Selective surface treatment grant 95% absorption and and only 5% reflection
  • Solar keymark certification on entire system
  • Safety valve
  • Available in single or double collector configuration
request a quoterequest a quoteContact us
Technical data

GR2 200-1

GR2 300-2

GR2 300-1
TECHNICAL DATA

Installation

Ground or flat roof

Ground or flat roof

Number of collectors

1

2

Total gross area m2

2.04

4.08

Total absorber area m2

1.94

3.88

Empty mass kg

114

178

Solar circuit capacity lt

11

23

Solar safety valve calibration bar

2.5

2.5

Absorption

95%

95%

Collector glass

Clear tempered glass, 3.3mm thick

Clear tempered glass, 3.3mm thick

Absorber material

Full face, aluminium sheet with selective coating

Full face, aluminium sheet with selective coating

Absorber tubing material kg

Copper

Copper

Max loaded tested

2400

2400

Nominal Tank capacity lt

200

300

Installation thickness mm

50

50

Outer material tank mm

Prepainted steel

Prepainted steel

Code

3022483

3022483
more information kairos_thermo_gr2. photoroom
