Heat Pumps

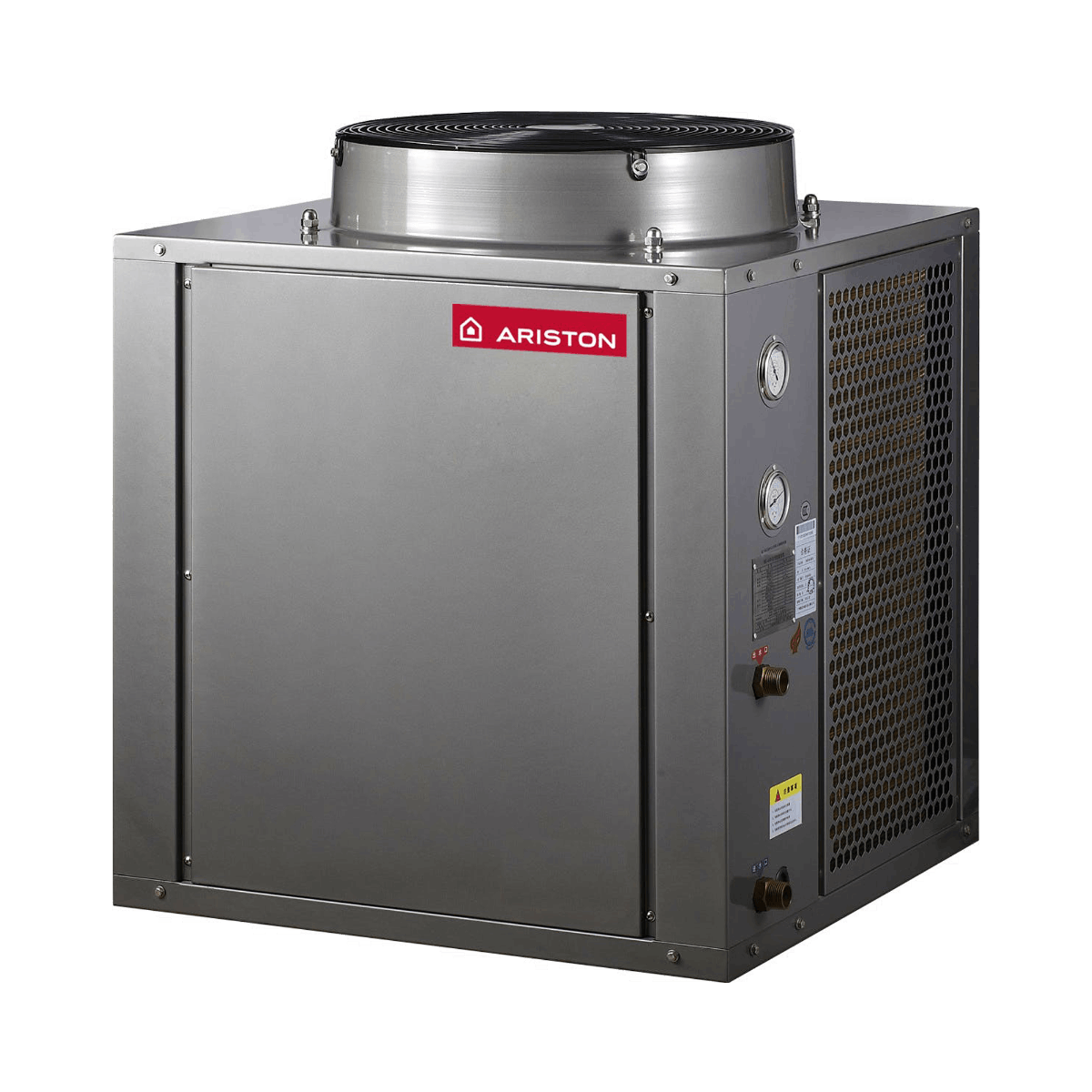

AR-6PM

The AR-6PM commercial heat pump uses a thermodynamic cycle to heat the water through the air sucked by the thermal group inverting the heat. A refrigerant fluid through status changes (Compression and expansion) withdraws the heat in the air at low temperature and givess it to the water at high temprerature. The product's electric consumption is only the one necessary to let the fan and the compressor work

Better exploitation of energy and renewable sources, enhanced performance

High COP operation

Non CFC gas used in the compressor

ar_6 10_pm_1

advantages and benefits

• Compact air/water heat pump for outside installation

• With suction gas cooled rotary compressor

• Heating regulator for mounting to the wall

• Filled with refrigerant R417a

• Water pump embedded for convenient installation

• Anti-freezing protection

• Ambient temperature sensor

• Compressor over-load protection

AR-6PM
discover its features
AR-6PM
discover its features

LOW CONNECTED POWER

Low power input and high power output.

SPACE SAVING

Compact design, the best centralized solution to overcome space constraint.

EASY INSTALLATION

Designed in collaboration with professionals to guarantee easy installation and maintenance.

RENEWABLE

Utilizes the free energy in the ambient air.

Technical data

AR-6PM

TECHNICAL DATA

Voltage

220 V

Phase

Single phase

Frequency

50 Hz

Heating capacity

5,80 kW

Rated power Input

1,36 kW

Maximum current

9 A

Heating water capacity

124 L/H

COP

4,26

Refrigerant

R417 A

Refrigerant charge

1200 g

Noise

≤56 dB(A)

Connection

G3/4" Inch

Weight

65 Kg

IP

IPX4

more information ar_6 10_pm_1
